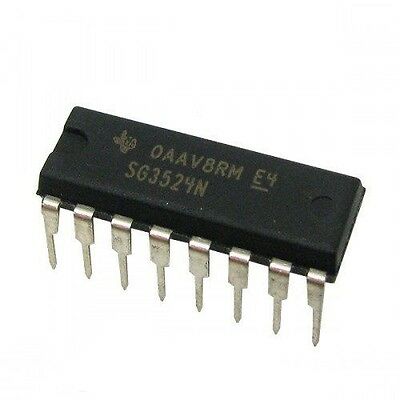

SG3524N SG3524 Regulating Pulse Width Modulator Breadboard-Friendly IC DIP-16
SG3524N SG3524 Regulating Pulse Width Modulator Breadboard-Friendly IC DIP-16

SG3524N SG3524 Regulating Pulse Width Modulator Breadboard-Friendly IC DIP-16

by Juried Engineering
$3.31

Description:

The SG3524 incorporates on a single monolithic chip all the function required for the construction of regulating power supplies inverters or switching regulators. They can also be used  as the control element for high power-output applications. The SG3524 family was designed for switching regulators of either polarity, transformer-coupled dc-to-dc converters,  transformerless voltage doublers and polarity converter applications employing fixed-frequency, pulse-width modulation techniques. The dual alternating outputs allows either  single-ended or push-pull applications.Each device includes an on-chip reference, error amplifier, programmable oscillator, pulse-steering flip flop, two uncommitted output transistors, a high-gain comparator, and current-limiting and shut-down circuitry.

Included:

  • SG3524N

This item features:

  • Complete Pulse-Width Modulation (PWM) Power-Control Circuitry
  • Uncommitted Outputs for Single-Ended or Push-Pull
  • Applications
  • Replace Chopper Amplifiers at a Lower Cost Low Standby Current ..... 8 mA Typical
  • Interchangeable With Industry Standard SG2524 and SG3524

Condition:

  • New and Authentic Component(s) - SG3524N Regulating Pulse Width Modulator.
  • Friendly Note: Be mindful of the many, inexpensive, counterfeits available on the market.


General details:

  • We are expanding on a daily basis. If you do not see the part, or quantity of the part, you are looking for, please, let us know. We will do our best to accommodate you.
